ATCA observations of
GRB980425
These results have been obtained as part of project C651 by D.A. Frail,
S.R. Kulkarni, M.H. Wieringa, R.M. Wark, J.L. Higdon and the BeppoSAX GRB team.
Permission to quote results should be obtained from Dale Frail
(dfrail@aoc.nrao.edu).
All coordinates are J2000.
Summary of observations

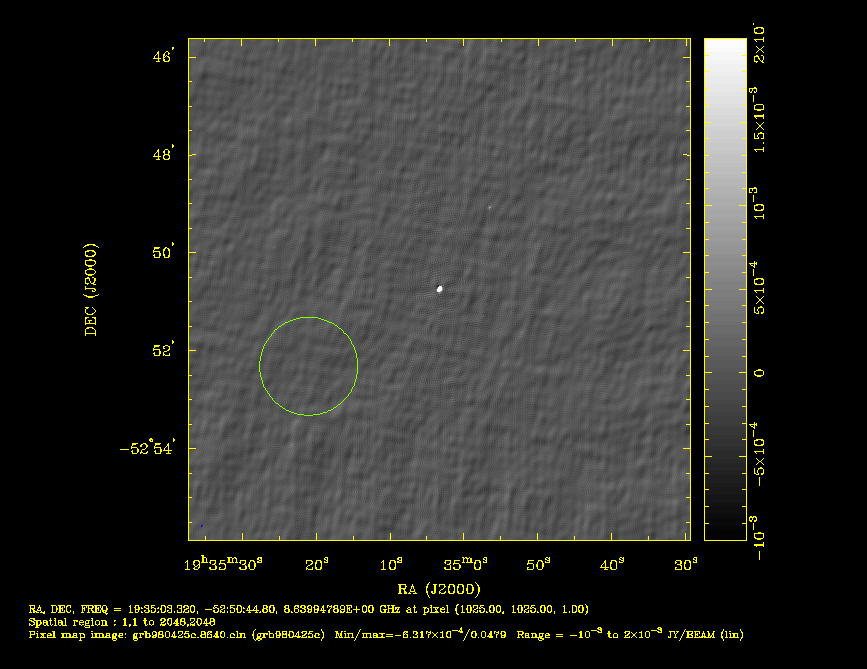

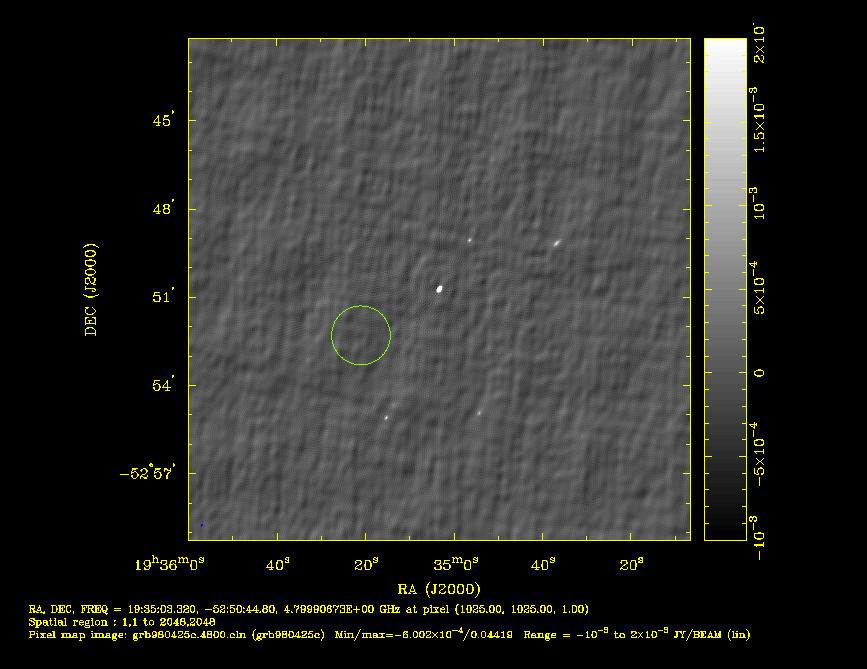

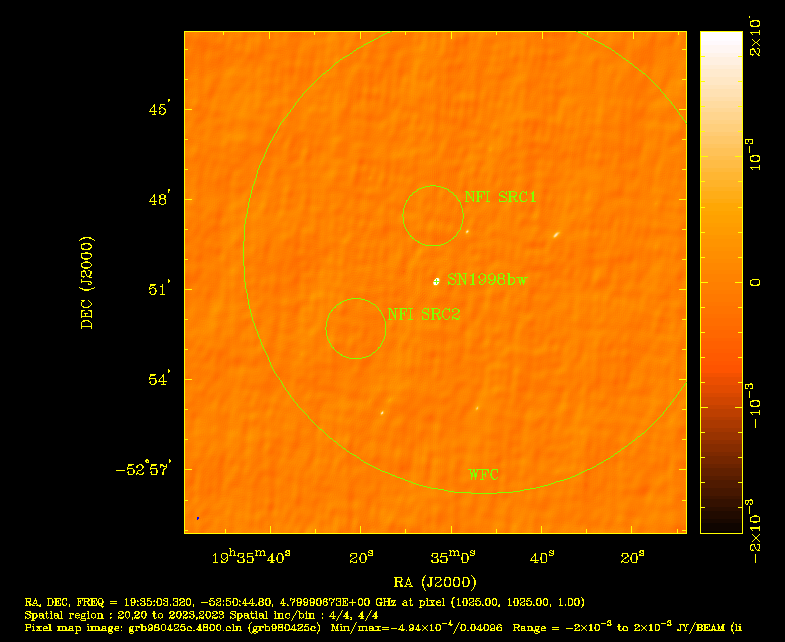

The 6cm radio image taken on May 7, 1998 with
the Australia Telescope Compact Array. Superimposed are the 8' BeppoSAX
Wide Field Camera (WFC) error circle and the two 1' Narrow Field Instrument
(NFI) error circles (source 1 was previously unknown, but has remained
constant and is thus unlikely to be related to the Gamma Ray Burst; source
2 was a faint transient source only seen once). The positions of the variable
radio source and the optical supernova coincide and are marked with SN1998bw.

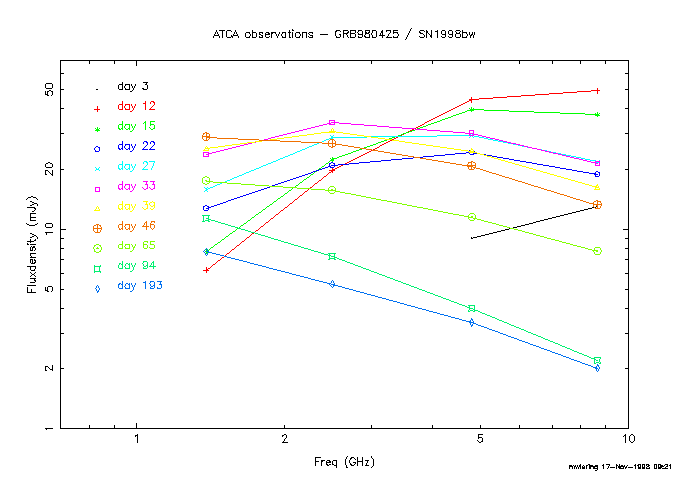

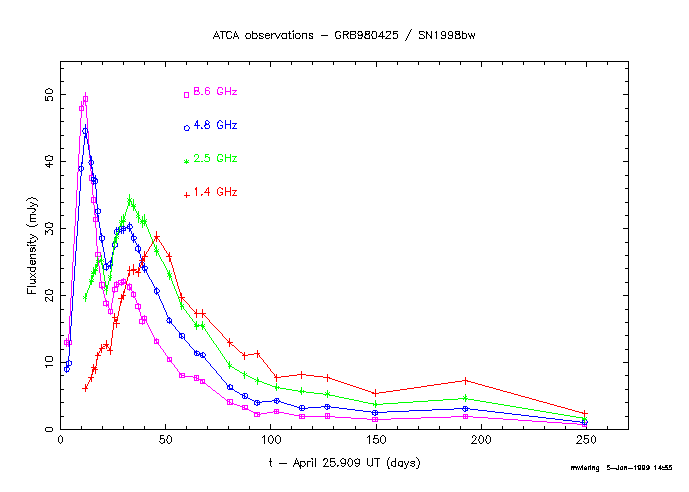

Table of Observations
Date
(UT) |
Day
|
S20
(mJy) |
S13
(mJy) |
S6
(mJy) |
S3
(mJy) |
Config
|
Integration
(h) |
1998 Apr 28 |
3.0 |
|
|
9.0 +/- 0.5 |
13.0 +/- 0.6 |
750A |
3.1 |
1998 Apr 29 |
4.0 |
|
|
9.9 +/- 0.5 |
13.0 +/- 0.6 |
750A |
2.2 |
1998 May 05 |
9.9 |
|
|
39.0 +/- 0.8 |
48.0 +/- 1.0 |
750A |
8.8 |
1998 May 07 |
11.7 |
6.2 +/- 0.5 |
19.7 +/- 0.6 |
44.6 +/- 0.9 |
49.4 +/- 1.0 |
750A |
2.6 |
1998 May 10 |
14.7 |
7.7 +/- 0.5 |
22.3 +/- 0.7 |
39.9 +/- 0.9 |
37.6 +/- 0.8 |
750A |
1.6 |
1998 May 11 |
15.7 |
9.2 +/- 0.5 |
23.5 +/- 0.7 |
37.4 +/- 0.8 |
34.3 +/- 0.7 |
750A |
2.3 |
1998 May 12 |
16.5 |
8.9 +/- 0.5 |
23.9 +/- 0.7 |
37.1 +/- 0.8 |
31.4 +/- 0.7 |
750A |
1.0 |
1998 May 13 |
17.8 |
11.0 +/- 0.5 |
25.1 +/- 0.7 |
32.6 +/- 0.7 |
26.2 +/- 0.6 |
6C |
2.6 |
1998 May 15 |
19.7 |
12.1 +/- 0.6 |
25.3 +/- 0.7 |
28.6 +/- 0.6 |
21.6 +/- 0.5 |
6C |
0.5 |
1998 May 17 |
21.6 |
12.7 +/- 0.6 |
20.9 +/- 0.7 |
24.3 +/- 0.6 |
18.8 +/- 0.4 |
6C |
1.2 |
1998 May 19 |
23.6 |
11.8 +/- 0.6 |
22.9 +/- 0.7 |
24.7 +/- 0.6 |
17.6 +/- 0.4 |
6C |
0.7 |
1998 May 21 |
25.9 |
16.7 +/- 0.6 |
28.0 +/- 0.8 |
27.6 +/- 0.6 |
20.9 +/- 0.5 |
6C |
0.5 |
1998 May 22 |
26.8 |
15.8 +/- 0.6 |
28.7 +/- 0.8 |
29.5 +/- 0.7 |
21.7 +/- 0.5 |
6C |
0.7 |
1998 May 24 |
28.8 |
19.6 +/- 0.6 |
31.1 +/- 0.8 |
30.0 +/- 0.7 |
22.0 +/- 0.5 |
6C |
1.3 |
1998 May 25 |
30.0 |
20.0 +/- 0.6 |
31.3 +/- 0.8 |
30.0 +/- 0.7 |
22.1 +/- 0.5 |
6C |
1.9 |
1998 May 28 |
32.9 |
23.7 +/- 0.7 |
34.3 +/- 0.8 |
30.3 +/- 0.7 |
21.3 +/- 0.5 |
750E |
1.0 |
1998 May 30 |
34.7 |
23.9 +/- 0.7 |
33.5 +/- 0.8 |
28.6 +/- 0.6 |
20.2 +/- 0.5 |
750E |
1.0 |
1998 Jun 01 |
36.9 |
23.5 +/- 0.7 |
31.8 +/- 0.8 |
27.0 +/- 0.6 |
18.4 +/- 0.4 |
750E |
1.0 |
1998 Jun 03 |
38.8 |
25.2 +/- 0.7 |
31.0 +/- 0.8 |
24.6 +/- 0.6 |
16.1 +/- 0.4 |
750E |
0.9 |
1998 Jun 04 |
40.0 |
25.9 +/- 0.7 |
31.3 +/- 0.8 |
24.1 +/- 0.6 |
16.6 +/- 0.4 |
750E |
0.7 |
1998 Jun 10 |
45.7 |
28.9 +/- 0.8 |
26.8 +/- 0.7 |
20.7 +/- 0.5 |
13.2 +/- 0.3 |
750E |
1.1 |
1998 Jun 16 |
51.7 |
25.8 +/- 0.7 |
23.1 +/- 0.7 |
16.3 +/- 0.4 |
10.5 +/- 0.3 |
750E |
1.9 |
1998 Jun 22 |
57.7 |
19.7 +/- 0.6 |
18.5 +/- 0.6 |
14.0 +/- 0.4 |
8.1 +/- 0.3 |
750E |
2.9 |
1998 Jun 29 |
64.7 |
17.4 +/- 0.6 |
15.6 +/- 0.6 |
11.4 +/- 0.4 |
7.7 +/- 0.3 |
750E |
3.8 |
1998 Jul 02 |
67.7 |
17.4 +/- 0.6 |
15.6 +/- 0.6 |
11.1 +/- 0.4 |
7.2 +/- 0.2 |
750E |
2.3 |
1998 Jul 15 |
80.5 |
13.0 +/- 0.6 |
9.6 +/- 0.5 |
6.3 +/- 0.3 |
4.1 +/- 0.2 |
750E |
1.7 |
1998 Jul 22 |
87.7 |
11.0 +/- 0.5 |
8.2 +/- 0.5 |
5.0 +/- 0.3 |
3.3 +/- 0.2 |
750E |
4.9 |
1998 Jul 28 |
93.4 |
11.3 +/- 0.5 |
7.3 +/- 0.5 |
4.0 +/- 0.3 |
2.2 +/- 0.2 |
750E |
1.6 |
1998 Aug 06 |
102.8 |
7.7 +/- 0.5 |
6.3 +/- 0.5 |
4.3 +/- 0.3 |
2.7 +/- 0.2 |
750E |
1.9 |
1998 Aug 18 |
114.8 |
8.2 +/- 0.5 |
5.7 +/- 0.5 |
3.2 +/- 0.3 |
1.9 +/- 0.2 |
6C |
2.7 |
1998 Aug 30 |
129.8 |
7.7 +/- 0.5 |
5.3 +/- 0.5 |
3.4 +/- 0.3 |
2.0 +/- 0.2 |
6C |
1.6 |
1998 Sep 22 |
149.5 |
5.4 +/- 0.5 |
3.8 +/- 0.5 |
2.5 +/- 0.3 |
1.5 +/- 0.2 |
6C |
1.3 |
1998 Nov 04 |
192.4 |
7.3 +/- 0.5 |
4.7 +/- 0.5 |
3.1 +/- 0.3 |
1.9 +/- 0.2 |
6D |
2.3 |
1998 Dec 30 |
249.2 |
2.4 +/- 0.5 |
1.6 +/- 0.5 |
1.1 +/- 0.3 |
0.7 +/- 0.2 |
375 |
2.7 |
1999 Mar 11 |
320 |
0.9 +/- 0.2 |
0.9 +/- 0.2 |
0.4 +/- 0.2 |
0.4 +/- 0.2 |
1.5B |
1.8 |
2000 Jun 24 |
790 |
0.7 +/- 0.2 (?) |
<0.2 +/- 0.1 |
<0.2 +/- 0.1 |
<0.2 +/- 0.1 |
6B |
3.3 |
Notes: All but the first three observation were made pointing at SN1998bw
(RA 19:35:03.32, Dec -52:50:44.8). The first observation pointed at NFI
source 1 (RA 19:35:04, Dec -52:48:34), the 2nd and 3rd at NFI source 2
(RA 19:35:21, Dec -52:52:19). The Day value in column 2 is the elapsed
time since the GRB (April 25.909) for the midpoint of the observation.
Observations on 98:04:28 - Day 3
-
Two observations of two hours each, spaced by 6 hours. The observing times
were from 98APR28:17:30 to 98APR28:19:30 and 98APR28:23:30 to 98APR29:01:30.
Total integration is 3.1 hours at 6cm (4800 MHz) and 3cm (8640 MHz). The
array is in a less than optimal configuration (750A) and antenna 3 was
not available during this run. The fieldcenter coincides with the center
of the first BeppoSAX 1' error circle (RA 19:35:04, Dec -52:48:34). The
primary beam FWHM is 10' and 5' respectively.
There is one object within the error circle at RA 19:34:56.49, Dec
-52:49:04.9 with a fluxdensity of 2.4 mJy at 6cm and 1.1 mJy at 3cm. This
is no longer considered a candidate as the BeppoSAX source is stable.
-

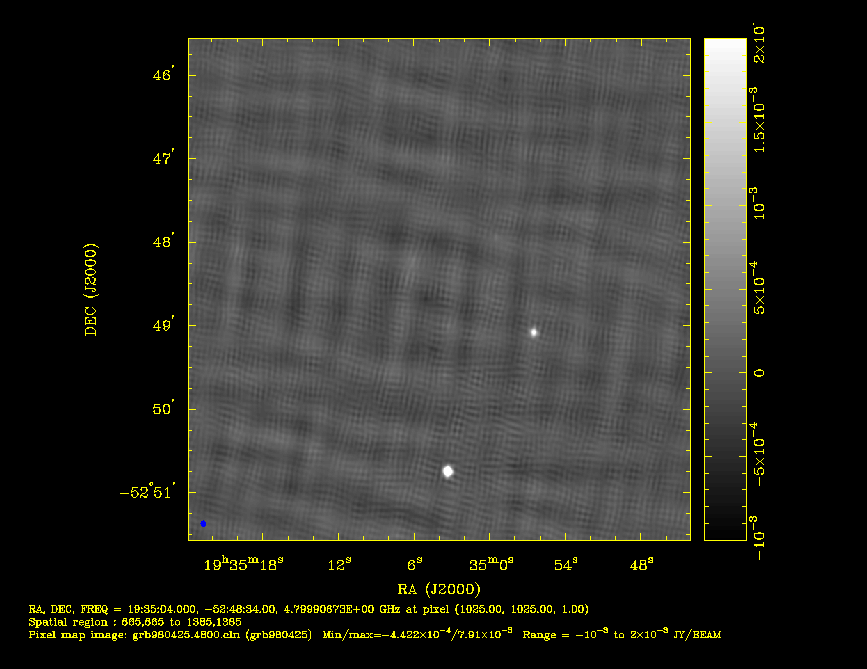

The 6cm image has an rms of 0.09
mJy. There are 3 sources above 10 sigma, one within the 1' error radius.
Here's a list with three 10 sigma detections
in a 5'x5' box. There are no detections within the latest BeppoSAX
error circle for the transient source at RA 19:35:21, Dec -52:52:19.
-

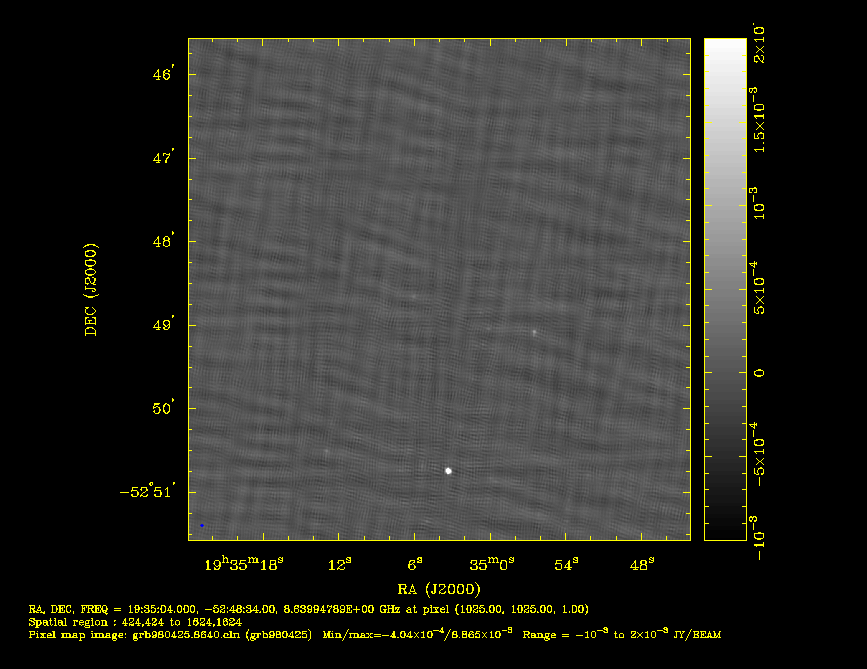

The 3cm image has an rms of 0.08
mJy. There are 2 sources above 10 sigma, one within the 1' error radius.
Here's a list with two 10 sigma detections
in a 5'x5' box. The BeppoSAX transient position is too far from the
field center to give a useful result.
-
Fluxdensities for the SN candidate at (RA 19:35:03.31 Dec -52:50:44.7)
are 13 mJy at 3cm and 9 mJy at 6cm.
Observations on 98:04:29 - Day 4
-
Observations at the BeppoSAX transient position were made from 98APR29:19:01
to 98APR29:20:00 and 98APR30:00:33 to 98APR30:02:05. Total integration
is 2.2 hours at 6cm (4800 MHz) and 3cm (8640 MHz) in the 750A configuration
(all 6 antennas operating).
No radio source has been detected within the 1' error circle. The 5-sigma
limit is 0.65 mJy at 4800 MHz and 0.43 mJy at 8640 MHz.
-
The 6cm image has an rms of 0.11
mJy. There are no detections within 5'x5' from the fieldcenter.
-
The 3cm image has an rms of 0.09
mJy. There are no detections within 5'x5' from the fieldcenter.
-

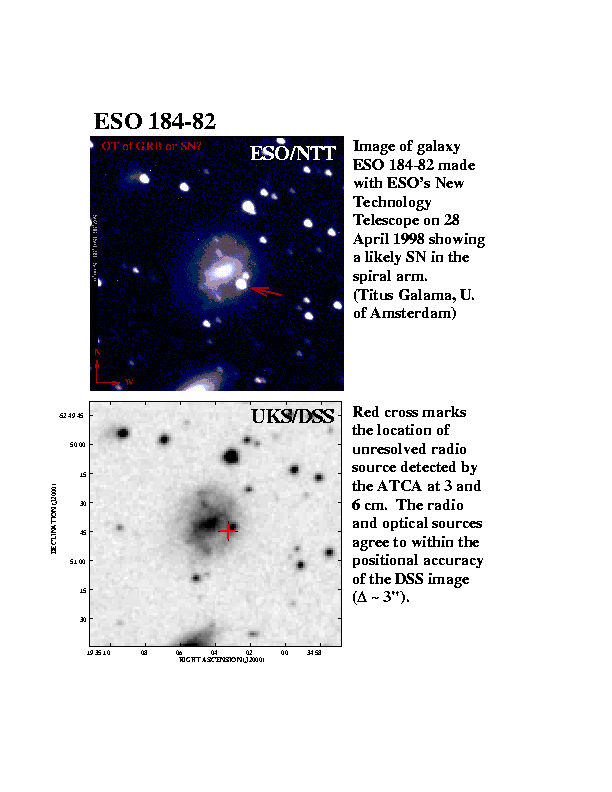

However, the brightest source in the field at both 3 and 6 cm (RA 19:35:03.31
Dec -52:50:44.7) coincides with a recent SN candidate discovered in the
early barred spiral ESO 184-G82. Flux densities
are 13 mJy at 3cm and 9.9 mJy at 6cm.
Observations on 98:05:05 - Day 10
-
Observations at the BeppoSAX transient position (NFI source 1SAXJ1935.3-5252,
RA 19:35:21, Dec -52:52:19) were made from 98MAY05:13:15 to 98MAY06:01:02.
Total integration was 8.8 hours at 6cm (4800 MHz) and 3cm (8640 MHz) in
the 750A configuration (all 6 antennas operating except for CA04 in the
last hour).
No radio source has been detected above 0.3 mJy within the 1' error
circle. The 5-sigma limit is 0.25 mJy at 4800 MHz and 8640 MHz, but there
are some artefacts near the fieldcenter. However, the SN candidate in
ESO 184-G82 has brightened considerably.
-
The 6cm image has an rms of 0.05
mJy. Here's a list with four 15 sigma
detections .
-
The 3cm image has an rms of 0.05
mJy. Here's a list with two 15 sigma
detections .
-
The SN candidate at (RA 19:35:03.31 Dec -52:50:44.7) now has a fluxdensity
(corrected for primary beam attenuation) of 48 mJy at 3cm and 39 mJy at
6cm.

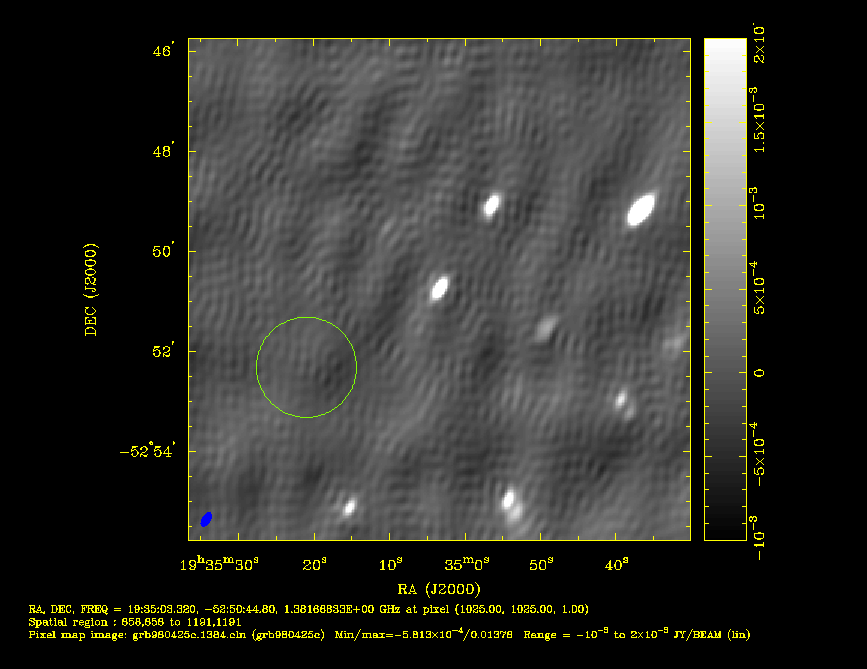

Observations on 98:05:07 - Day 12
-
Today observations were made at the position of the SN candidate at (RA
19:35:03.32, Dec -52:50:44.8) from 98MAY07:11:36 to 98MAY07:18:55. Total
integration was 2.6 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800
MHz) and 3cm (8640 MHz) in the 750A configuration using all 6 antennas.
-
The SN candidate was detected at all frequencies and had a fluxdensity
of 5, 20, 45, 49 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

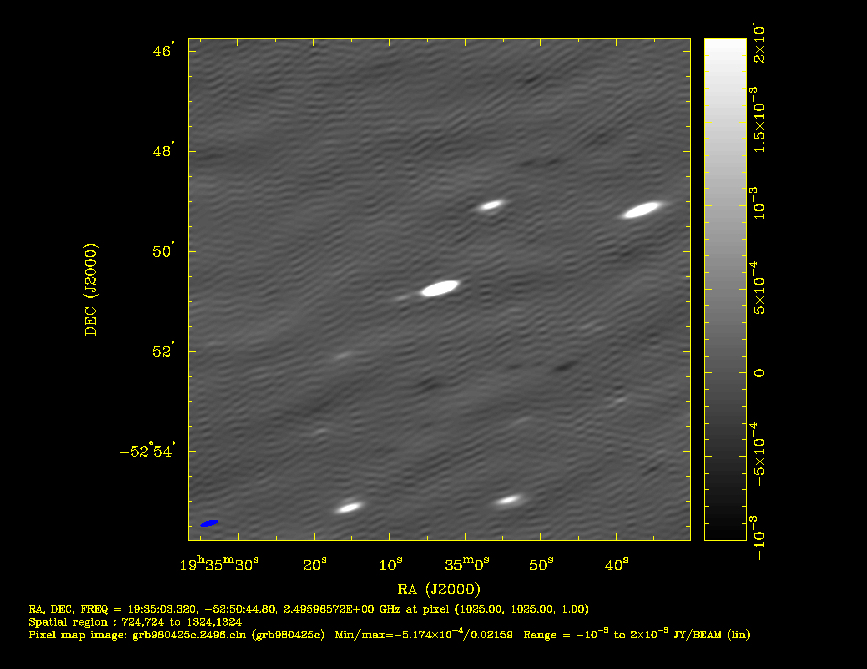

Observations on 98:05:10 - Day 15
-
Observations were made at the position of the SN candidate at (RA 19:35:03.32,
Dec -52:50:44.8) from 98MAY10:11:38 to 98MAY10:15:00. Total integration
was 1.6 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) in the 750A configuration using all 6 antennas.
-
The SN candidate was detected at all frequencies and had a fluxdensity
of 7, 21, 40, 37 mJy at 20, 13, 6, and 3cm respectively.
-

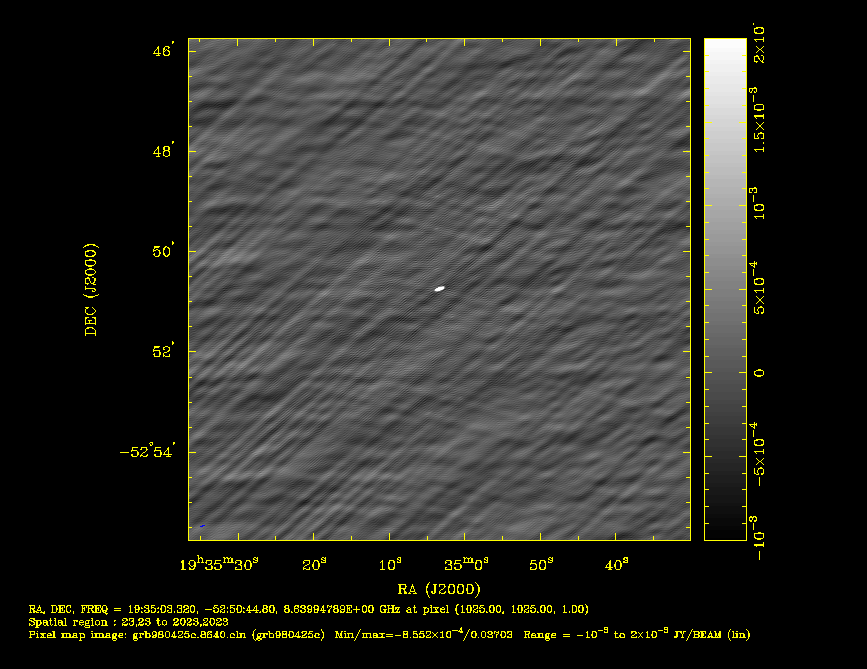

Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

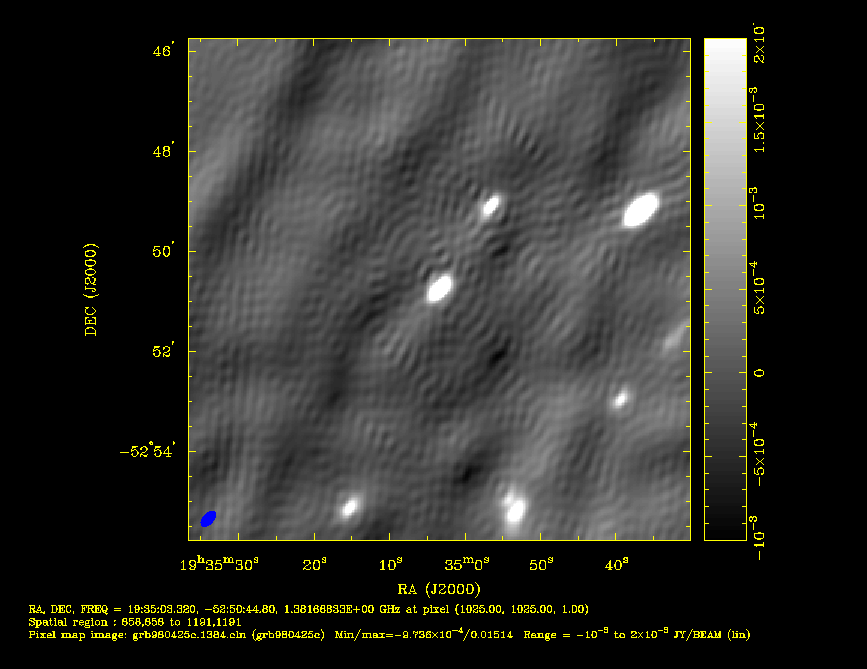

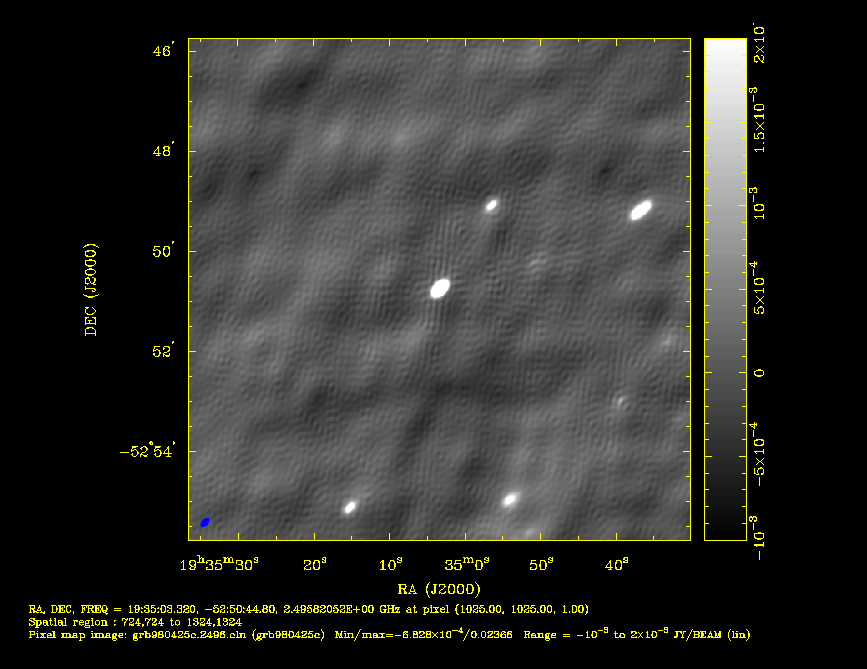

Observations on 98:05:11 - Day 16
-
Observations were made at the position of the SN candidate at (RA 19:35:03.32,
Dec -52:50:44.8) from 98MAY11:11:21 to 98MAY11:18:00. Total integration
was 2.3 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) in the 750A configuration using all 6 antennas.
-
The SN candidate was detected at all frequencies and had a fluxdensity
of 7, 24, 38, 34 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm
Observations on 98:05:12 - Day 17
-
Observations were made at the position of the SN candidate at (RA 19:35:03.32,
Dec -52:50:44.8) from 98MAY12:11:06 to 98MAY12:13:59. Total integration
was ~1 hour at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) in the 750A configuration using all 6 antennas.
-
The SN was detected at all frequencies and had a fluxdensity of 7, 24,
36, 28 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

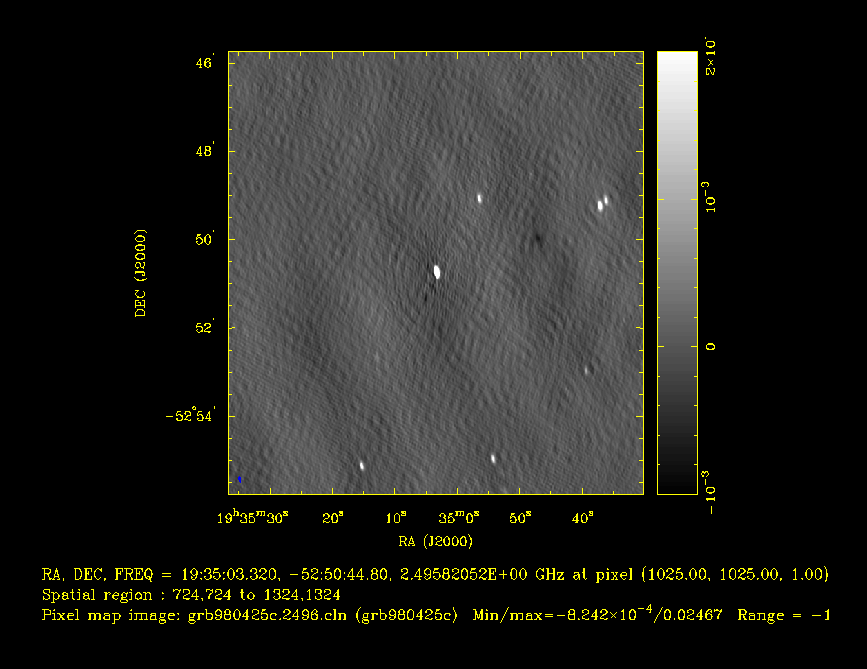

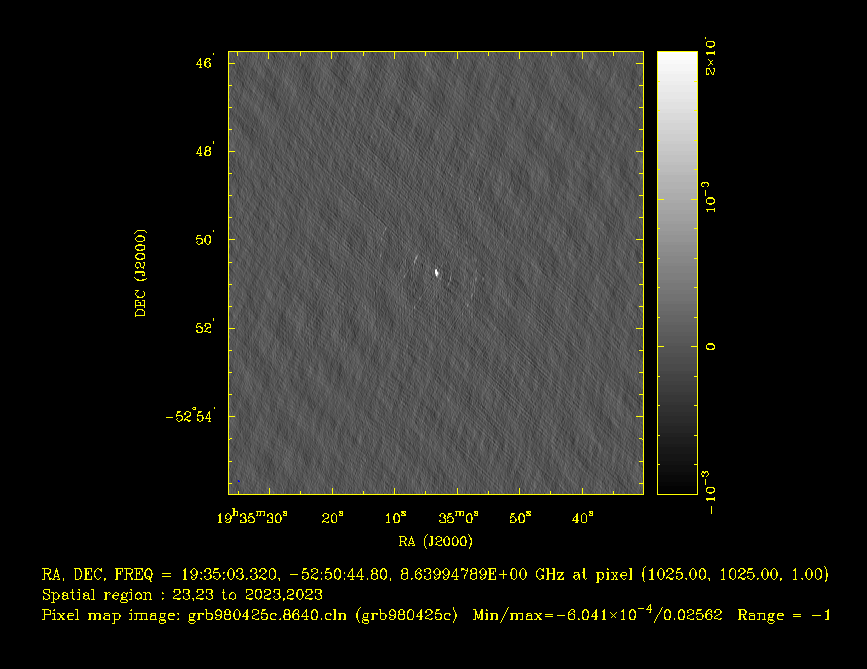

Observations on 98:05:13 - Day 18
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) from 98MAY13:15:14 to 98MAY13:22:56. Total integration was
2.6 hour at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm (8640
MHz) using 5 antennas in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 10, 24,
34, 27 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm
Observations on 98:05:15 - Day 20
-
Two short observations were made at the position of SN1988bw (RA 19:35:03.32,
Dec -52:50:44.8) at 98MAY15:13:21 and 98MAY15:19:13. Total integration
was 0.5 hour at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) using all antennas in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 11, 23,
25, 19 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

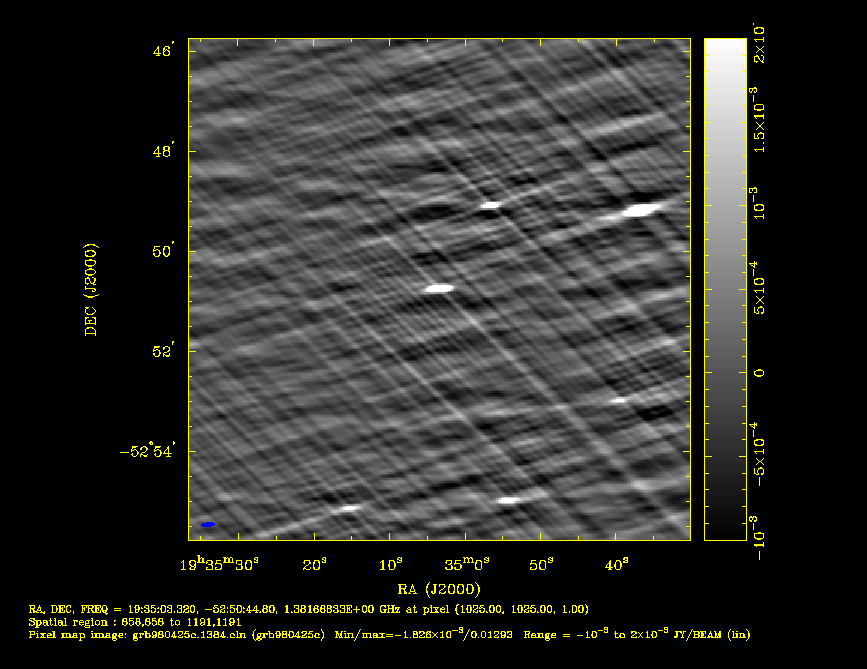

Observations on 98:05:17 - Day 22
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) from 98MAY17:11:10 to 98MAY17:19:13. Total integration was
1.15 hour at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm (8640
MHz) using 5 to 6 antennas in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 13, 20,
23, 18 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm
Observations on 98:05:19 - Day 24
-
Three short observations were made at the position of SN1988bw (RA 19:35:03.32,
Dec -52:50:44.8) from 98MAY19:11:52 to 98MAY19:18:58. Total integration
was 0.7 hour at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) using 6 antennas in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 12, 22,
24, 18 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

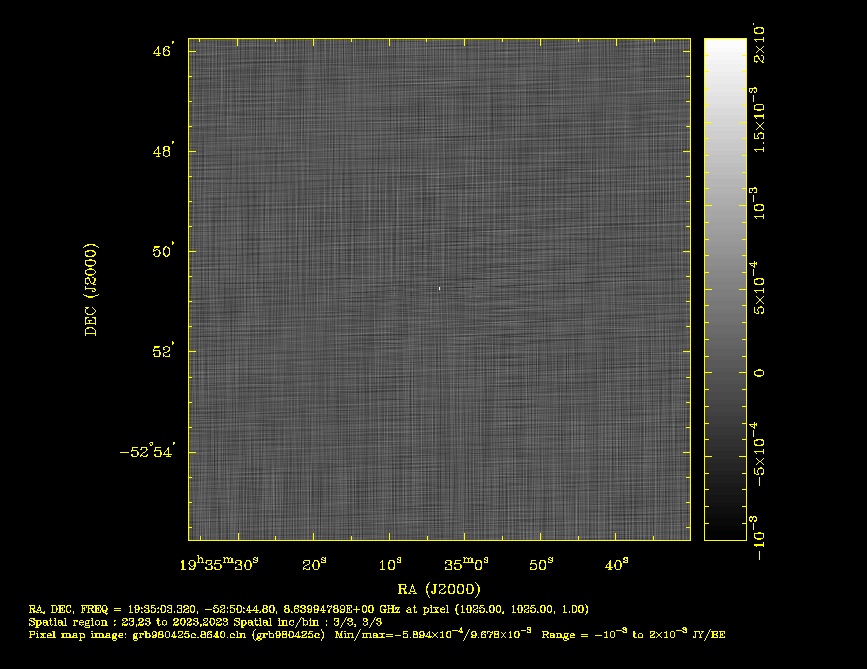

Observations on 98:05:21 - Day 26
-
Two short observations were made at the position of SN1988bw (RA 19:35:03.32,
Dec -52:50:44.8) between 98MAY21:17:33 and 98MAY22:00:05. Total integration
was 0.45 hour at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) using 6 antennas in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 16, 26,
25 and 18.5 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm
Observations on 98:05:22 - Day 27
-
Three short observations were made at the position of SN1988bw (RA 19:35:03.32,
Dec -52:50:44.8) between 98MAY22:12:27 and 98MAY22:23:50. Total integration
was 0.71 hour at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) using 6 antennas in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 16, 27,
29 and 22 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

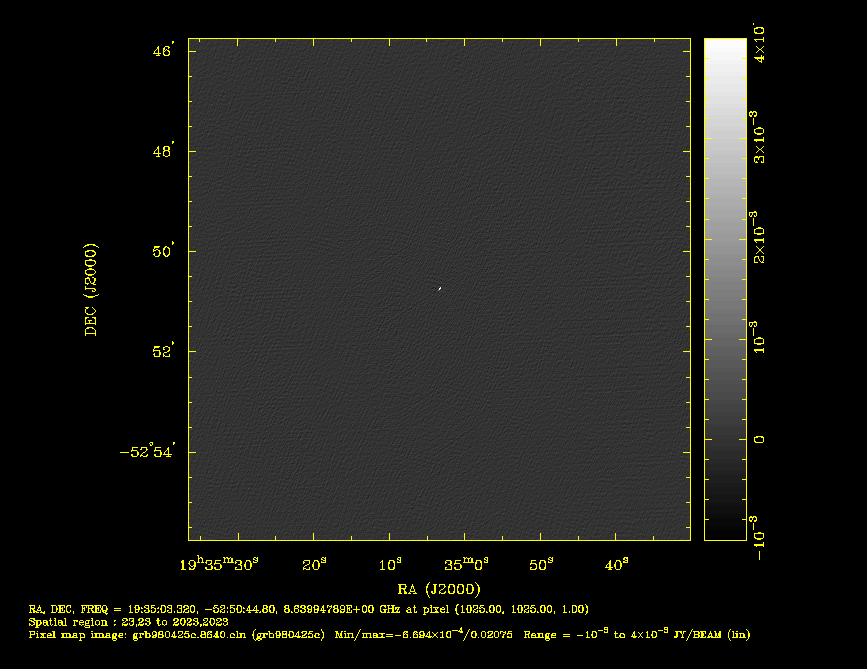

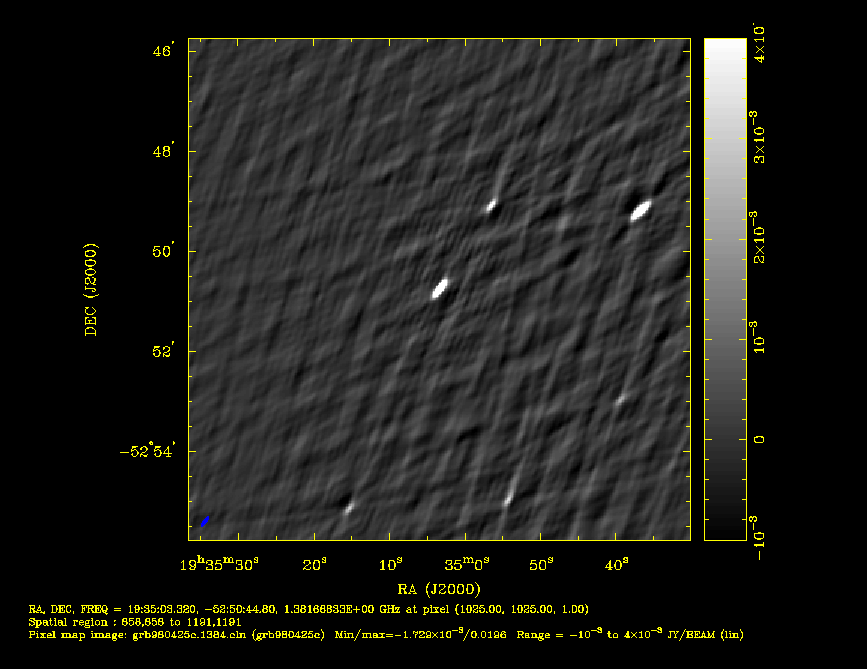

Observations on 98:05:24 - Day 29
-
Three observations were made at the position of SN1988bw (RA 19:35:03.32,
Dec -52:50:44.8) between 98MAY24:12:37 and 98MAY25:00:01. Total integration
was 1.3 hour at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) using 6 antennas in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 20, 32,
30 and 22 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm
Observations on 98:05:25 - Day 30
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98MAY25:17:19 and 98MAY26:00:24. Total integration
was 1.9 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) using 6 antennas in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 19, 32,
30 and 22.5 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

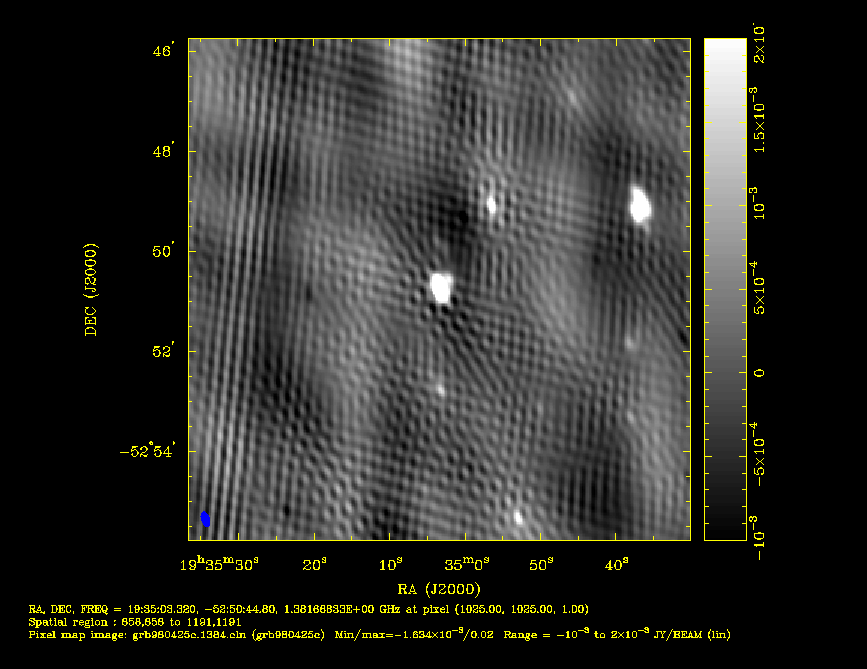

Observations on 98:05:28 - Day 33
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98MAY28:16:15 and 98MAY28:22:21. Total integration
was 0.95 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and
3cm (8640 MHz) using 6 antennas in the 750E configuration. Note that the
20cm fluxes are rather uncertain for short observations in this configuration
due to confusion and limited uv-coverage (+/- 3 mJy).
-
The SN was detected at all frequencies and had a fluxdensity of 19, 25,
29 and 21 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

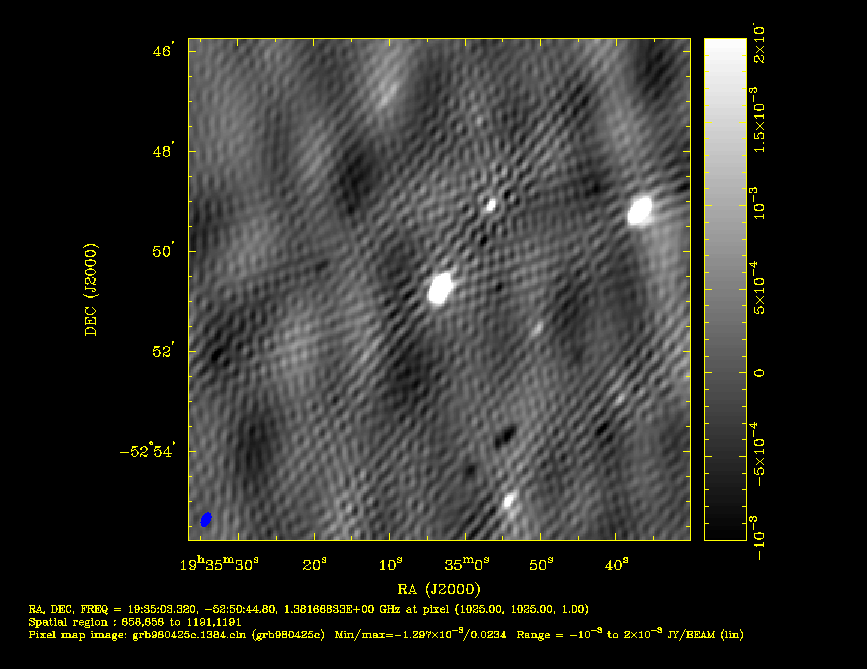

Observations on 98:05:30 - Day 35
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98MAY30:11:46 and 98MAY30:18:30. Total integration
was 0.95 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and
3cm (8640 MHz) using 6 antennas in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 24, 32,
27 and 17 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

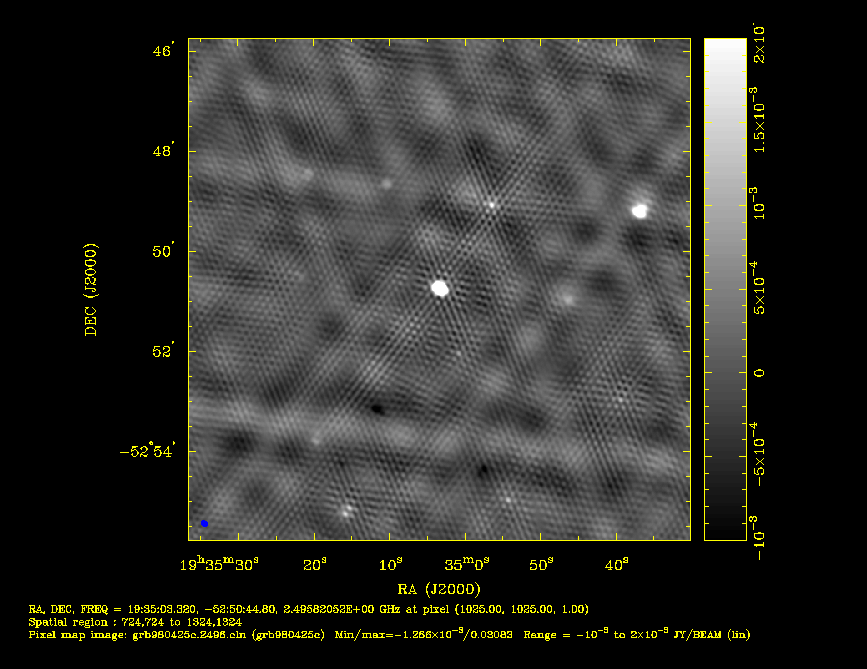

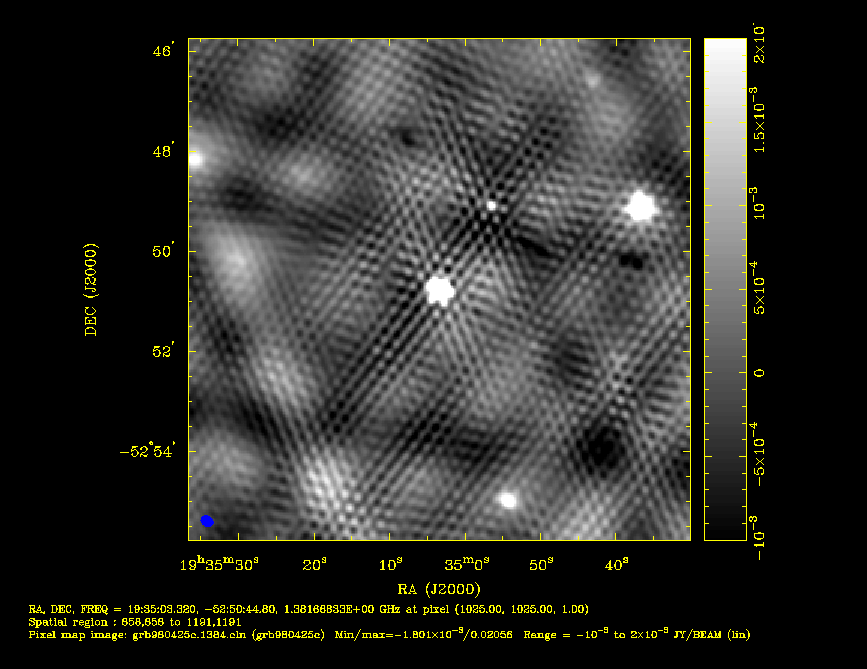

Observations on 98:06:01 - Day 37
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUN01:13:47 and 98JUN01:22:46. Total integration
was 0.97 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and
3cm (8640 MHz) using 6 antennas in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 19, 30,
26 and 16 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

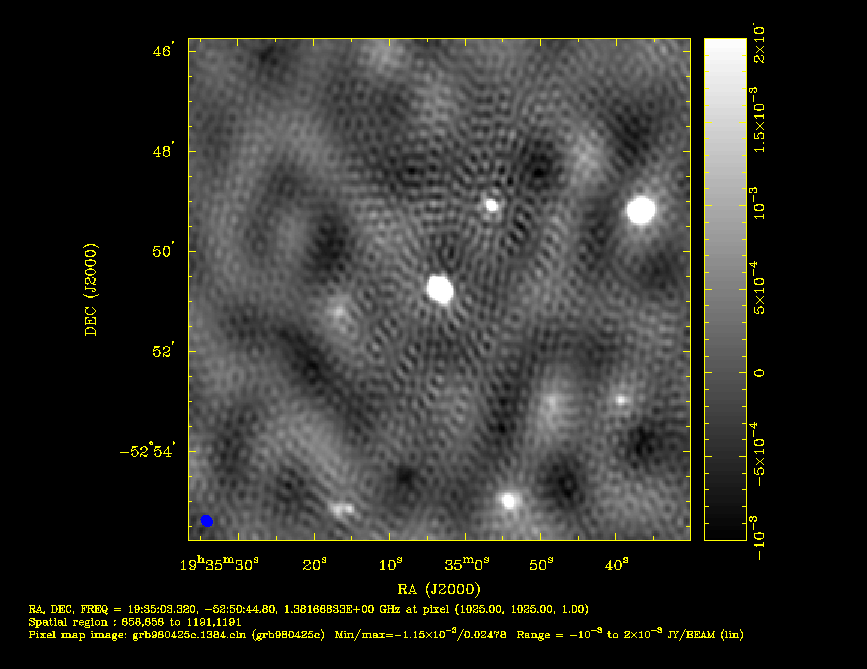

Observations on 98:06:03 - Day 39
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUN03:10:21 and 98JUN03:22:17. Total integration
was 0.85 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and
3cm (8640 MHz) using 6 antennas in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 25, 30,
24 and 17 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

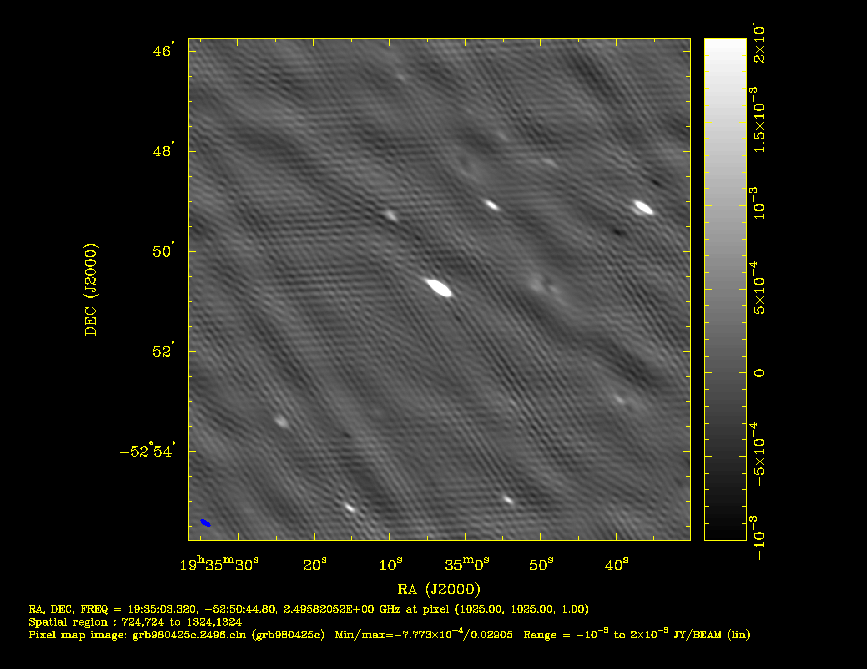

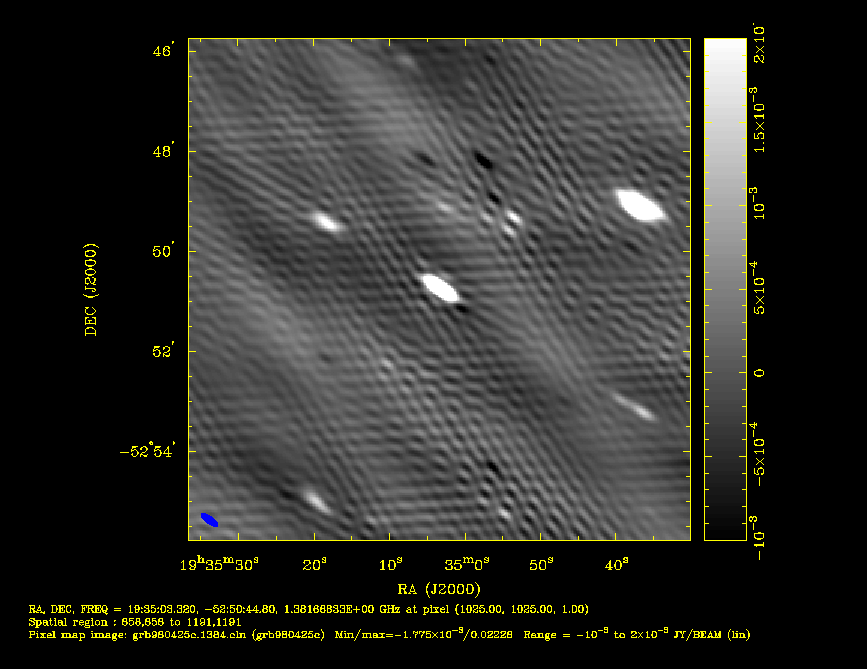

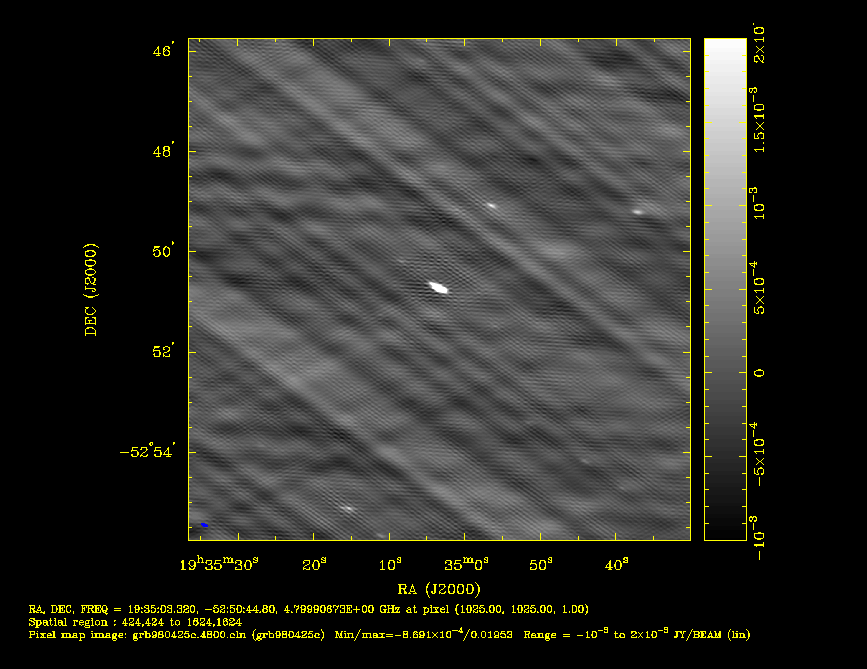

Observations on 98:06:04 - Day 40
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUN04:19:19 and 98JUN05:00:11. Total integration
was 0.65 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and
3cm (8640 MHz) using 6 antennas in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 21, 29,
22 and 15 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

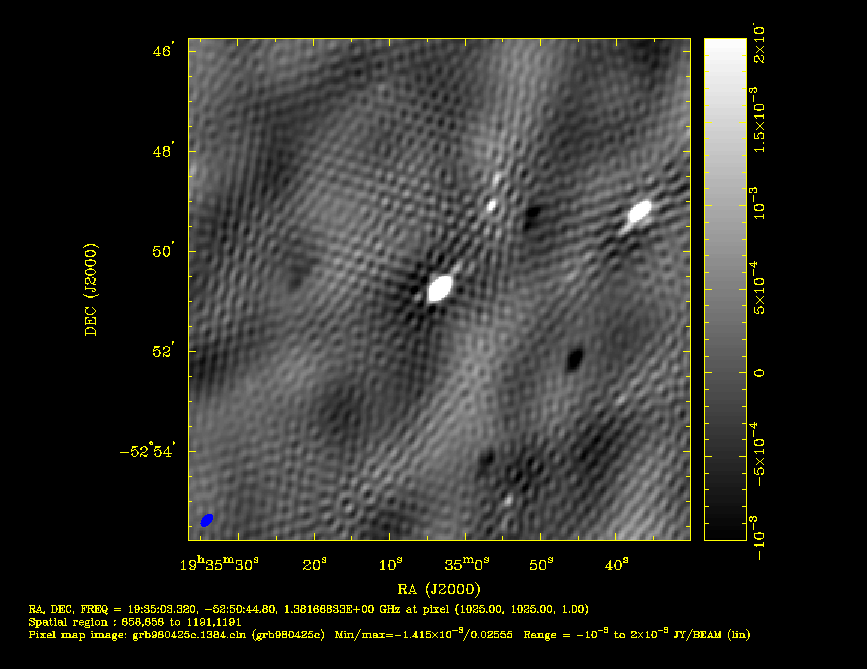

Observations on 98:06:10 - Day 46
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUN10:09:05 and 98JUN10:17:34. Total integration
was 1.1 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) using 6 antennas in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 23, 26,
19 and 12 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm

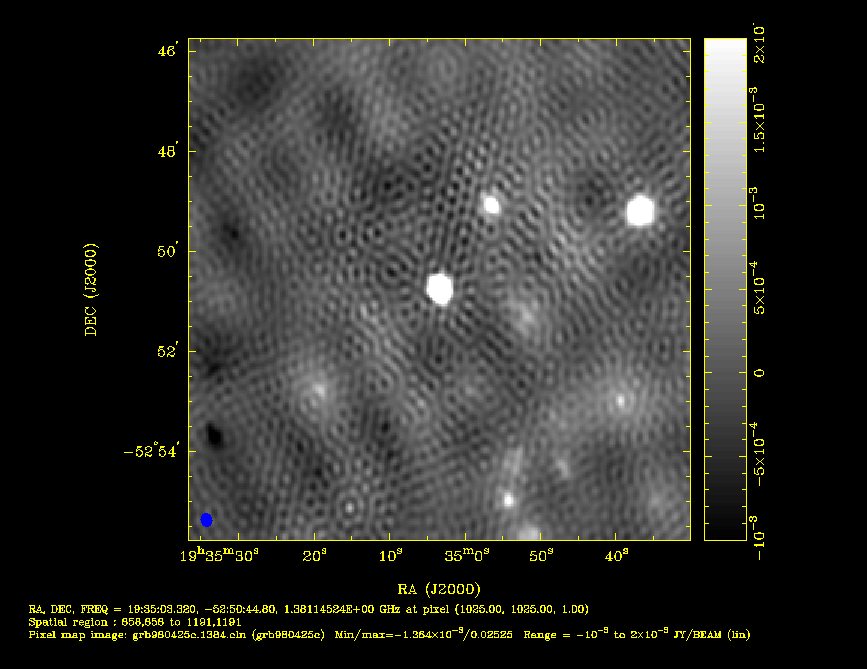

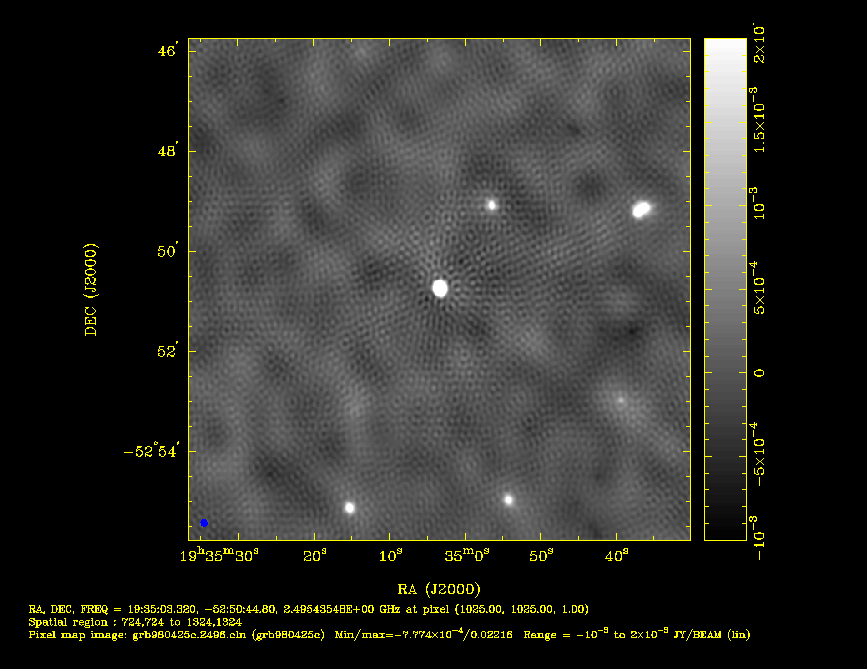

Observations on 98:06:16 - Day 52
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUN16:09:50 and 98JUN16:20:25. Total integration
was 1.9 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and 3cm
(8640 MHz) using 5 antennas in the 750E configuration (CA01 missing).
-
The SN was detected at all frequencies and had a fluxdensity of 25, 22,
17 and 10 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm
Observations on 98:06:22 - Day 58
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUN22:09:51 and 98JUN22:20:33. Total integration
was 2.9 hours at 20cm (1384 MHz), 13cm (2496 MHz), and 1.5 hours at 6cm
(4800 MHz) and 3cm (8640 MHz) in the 750E configuration (CA01 missing at
13cm).
-
The SN was detected at all frequencies and had a fluxdensity of 19, 17,
13 and 7.5 mJy at 20, 13, 6, and 3cm respectively.
-
Images: 20cm , 13cm
, 6cm , 3cm
-
Source lists: 20cm , 13cm
, 6cm , 3cm
Observations on 98:06:29 - Day 65
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUN29:08:16 and 98JUN29:20:35. Total integration
was 3.8 hours at 20cm (1384 MHz), 13cm (2496 MHz), and 4.0 hours at 6cm
(4800 MHz) and 3cm (8640 MHz) in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 17.4, 15.6,
11.1 and 7.2 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:07:02 - Day 68
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUL02:08:43 and 98JUL02:19:26. Total integration
was 2.3 hours at 20cm (1384 MHz), 13cm (2496 MHz), and 2.8 hours at 6cm
(4800 MHz) and 3cm (8640 MHz) in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 17.4, 15.6,
11.4 and 7.7 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:07:15 - Day 81
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUL15:06:51 and 98JUL15:14:44. Total integration
was 1.7 hours at 20cm (1384 MHz), 13cm (2496 MHz), and 1.9 hours at 6cm
(4800 MHz) and 3cm (8640 MHz) in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 13.0, 9.6,
6.3 and 4.1 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:07:22 - Day 88
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUL22:06:54 and 98JUL22:20:50. Total integration
was 4.9 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm
(4800 MHz) and 3cm (8640 MHz) in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 11.0, 8.2,
5.0 and 3.3 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:07:28 - Day 94
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98JUL28:06:00 and 98JUL28:10:33. Total integration
was 1.6 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm
(4800 MHz) and 3cm (8640 MHz) in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 11.3, 7.3,
4.0 and 2.2 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:08:06 - Day 103
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98AUG06:14:46 and 98AUG06:20:03. Total integration
was 1.9 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm
(4800 MHz) and 3cm (8640 MHz) in the 750E configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 7.7, 6.3,
4.3 and 2.7 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:08:18 - Day 115
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98AUG18:04:18 and 98AUG18:12:09. Total integration
was 2.7 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm
(4800 MHz) and 3cm (8640 MHz) in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 8.2, 5.7,
3.2 and 1.9 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:08:30 - Day 127
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98AUG30:06:01 and 98AUG30:11:02. Total integration
was 1.6 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm
(4800 MHz) and 3cm (8640 MHz) in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 7.7, 5.3,
3.4 and 2.0 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:09:23 - Day 150
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98SEP22:06:34 and 98SEP22:16:56. Total integration
was 1.3 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm
(4800 MHz) and 3cm (8640 MHz) in the 6C configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 5.4, 3.8,
2.5 and 1.5 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:11:04 - Day 193
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98NOV04:01:35 and 98NOV04:11:19. Total integration
was 2.3 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm
(4800 MHz) and 3cm (8640 MHz) in the 6D configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 7.3, 4.7,
3.1 and 1.9 mJy at 20, 13, 6, and 3cm respectively.
Observations on 98:12:30 - Day 249
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 98DEC29:21:10 and 98DEC30:07:02. Total integration
was 2.7 hours at 20cm (1384 MHz), 13cm (2496 MHz), 6cm (4800 MHz) and
3cm (8640 MHz) in the 375m configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 2.4, 1.6,
1.1 and 0.7 mJy at 20, 13, 6, and 3cm respectively.
Observations on 99:03:11 - Day 320
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 99MAR11:15:45 and 99MAR12:02:13. Total integration
was 1.7 hours at 20cm (1384 MHz) and 13cm (2496 MHz) and 1.9 hours at
6cm (4800 MHz) and 3cm (8640 MHz) in the 1.5B configuration.
-
The SN was detected at all frequencies and had a fluxdensity of 0.9, 0.9,
0.4 and 0.4 mJy at 20, 13, 6, and 3cm respectively, the 6 and 3cm
detections are marginal and could be affected by dc-offset terms.
Observations on 2000:06:24 - Day 790
-
Observations were made at the position of SN1988bw (RA 19:35:03.32, Dec
-52:50:44.8) between 00JUN23:08:12 and 00JUN24:16:58. Total integration
was 3.2 hours at 20cm (1384 MHz) and 13cm (2496 MHz) and 3.5 hours at
6cm (4800 MHz) and 3cm (8640 MHz) in the 6B configuration.
-
The SN was possibly detected at 20cm, 0.7+/-0.2 mJy, upper limit is around 0.2
mJy (2 sigma) at the other bands. The 20cm detection could be affected by dc
offset terms.
This work has been reported in GCN63,
IAUC6896,
GCN71, IAUC6903,
astro-ph/9807001,
Kulkarni et al, 1998, Nature 395, 663 and
Wieringa, M. H.; Kulkarni, S. R.; Frail, D. A., 1999, A&AS 138, 467.
Last changed on: 28-JUN-2000
Mark.Wieringa@csiro.au
